Cold storage panel

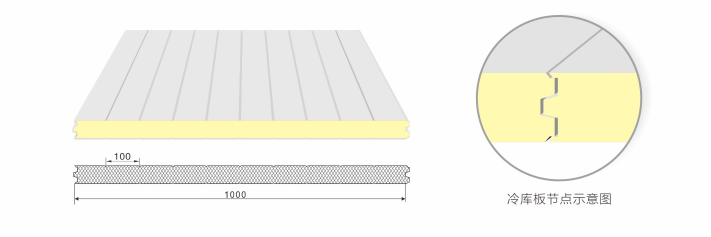

The cold storage panel adopts concave-convex groove structure, which improves the insulation and air tightness at the joints of the panel. It is specially designed for cold storage rooms and warehouses. The panel are uniform and stable, with excellent heat insulation performance, good waterproof performance, light weight, beautiful appearance, durable, simple and quick installation, and completely solves the temperature difference in the cold storage industry. Within a certain modulus, the storage body can freely change in the three directions of length, width and height, and can be expanded or contracted as required, the jigsaw plate can also be disassembled and reassembled in different places, which is very convenient to assemble.

Classification:

Medium and large cold storage

Cold storage panel

Tel:

+86-13946047900

E-mail:

dajz@dajzgroup.com

Get Quote
Related Products

Product Introduction

Product Introduction

Good waterproof performance polyurethane cold storage panel, moisture-proof, water resistant. Rigid polyurethane closed cell rate of more than 98%, is a hydrophobic material, will not increase the thermal conductivity and wall seepage due to moisture absorption. The porosity of polyurethane material is stable, basically closed pore structure, not only has excellent thermal insulation performance, but also has anti-freeze-thaw and sound absorption performance.



Product Features

● No joints and cracks inside the polyurethane sandwich panel, the overall density is uniform.
● One-time foaming, the pressure resistance of the plate is stronger, and the heat preservation effect is good.
● New environmentally friendly materials, healthy and green. Automatic cutting, high precision.
● Density 40kg/m3, thermal conductivity 0.021 w/m.k, hydrophobicity> 98%, combustion performance B1, B2, insulation/waterproof/easy installation/light.








Technical Data

Thickness of cold storage panel

Temperature difference between inside and outside the warehouse

Wall panel height

Top plate length

Applicable cold storage temperature

mm

℃

m *

m**

℃

100

30

5

4.45

-15

125

35

5.5

5.2

-20

150

50

6

5.85

-25

175

65

6.5

6.3

-30

200

75

7

6.8

-40

Remarks: m */m **: under the internal and external pressure difference and contraction pressure, there is no wind load. If the length is exceeded or there is wind load, steel wall beam/steel lifting beam shall be set; The above data is based on the heat flow per unit area of 8-10 W/m.2to calculate.



Product Application

Cold storage; cold chain storage; polar pavilion, etc.
