Polyurethane side-sealed rock wool (roof)
Product Introduction
Introduction to rock wool core material
●Rock wool core material: Jinyu Xingpai rock wool, Hongshi brand rock wool.
●This rock wool is not the same as that rock wool: real rock wool is formed by melting basalt at temperatures above 1200 degrees and then spinning it into fibers. Its basalt content reaches over 70%. Traditional rock wool is made from steelmaking slag spun into fibers. The technical indicators of the two are vastly different, and the price also varies greatly.
●Appearance: Rock wool is flat and orderly, with uniform color; mineral wool is messy and disordered, with varying shades.
●Touch: Rock wool feels soft like cotton; mineral wool is prickly and can cause allergic reactions.
●Slag ball content: low in rock wool; high in mineral wool, which is a direct cause of allergies.
●Thermal conductivity: low in rock wool; high in mineral wool.
●Acidity coefficient; hydrophobic rate; fire resistance Class A.
Overall characteristics and advantages of polyurethane side-sealed rock wool
① Has thermal insulation properties;
② Sound absorption and noise reduction;
③ Non-corrosive;
④ Moisture resistance;
⑤ Heavy weight, fire resistance Class A;
⑥ Easy and quick installation, can be resized according to needs;
⑦ Good surface flatness;
⑧ Excellent water tightness;
⑨ No cold bridge phenomenon;
⑩ Lightweight structure;
⑪ Environmentally friendly and healthy;
Introduction to roof panel type

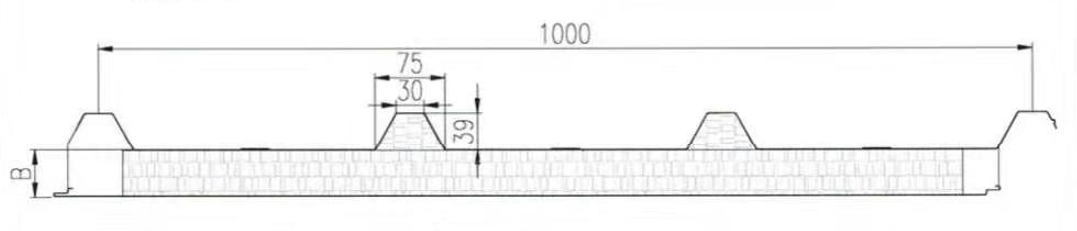

Corrugation height 40mm, peak spacing 333mm, effective width 1000mm. High rigidity, good drainage effect, improved ability to resist negative wind pressure, tight overlap, quick construction.
|
Name | Polyurethane side-sealed rock wool roof sandwich panel |
| Panel type | DA40-1000 type (1) | |
| Effective width | 1000mm | |
| Core material | Rock wool, glass wool | |
| Core material thickness | 40mm/50mm/75mmm/80mm/100mm/120mm/150mm/200mm | |
| Steel plate thickness | 0.4mm-1.0mm | |
| Performance | Excellent thermal insulation performance, fire resistance Class A, high strength, high rigidity, good water tightness. |
Application fields
Industrial buildings, office buildings, public buildings, large stores, residential buildings, etc.
